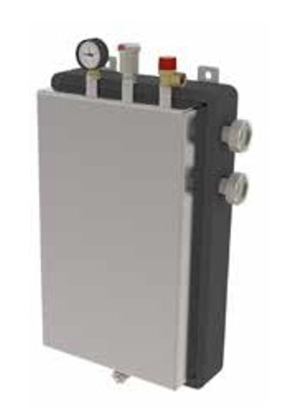

EQUICOLL X

HYDRAULIC SEPARATOR AND INERTIAL TANK IN AISI 304

Vertical hydraulic separator with inertial micro-boiler for wall installation in AISI 304 stainless steel. Combination with CS80 and CS125 DN25 manifolds or single installation, with a special internal configuration that makes it ideal for use with heat pumps for heating and cooling, obtaining a perfect balance of the flow rates between the primary generator circuit and the secondary system circuit.

EQUICOLL is extremely flexible in installation:

to the right or left of the distribution groups, upwards or downwards, depending on the

  • Separator in AISI 304 stainless steel;
  • PLUG&PLAY installation with CS80 and CS125 DN25 systems;

  • Wall fixing, brackets integrated into the product.

BUY NOW

THE SUPPLY INCLUDES:

  • Separator/accumulation;

  • Drain valve, automatic air vent valve with intercept fitting, 3 bar safety valve and pressure gauge;

  • Pair of fittings Ø 1″ 1/2 M x 1″ F (in case of single installation we recommend purchasing 1 piece of code 903031)

  • Coibentazione in PE sp. 20 mm

PERFORMANCE;

  • Nominal flow rate = 3 m3/h – max 4.5 m3/h;
  • Max power = 50 kW BOILER;

  • Max power = 18 kW HEAT PUMP.

CAPACITY:

  • EQUICOLL X 20: 20 liters
  • EQUICOLL X 50: 45 liters

TECHNICAL DATA:

  • Working temperature range: +5°/+80 C°;

  • Maximum operating pressure: 3 bar;
  • Connections: IN/OUT 1″ 1/2 F SP;
  • Fluids: water – water / glycol mixtures (max 30%).

MATERIALS

  • Separator/accumulator: AISI 304 stainless steel

  • Fittings: Brass UNI EN 12164 – CW614N

  • Insulation: PE 20 mm, Density 60 Kg/m3, Thermal cond. 0.04 W/mk

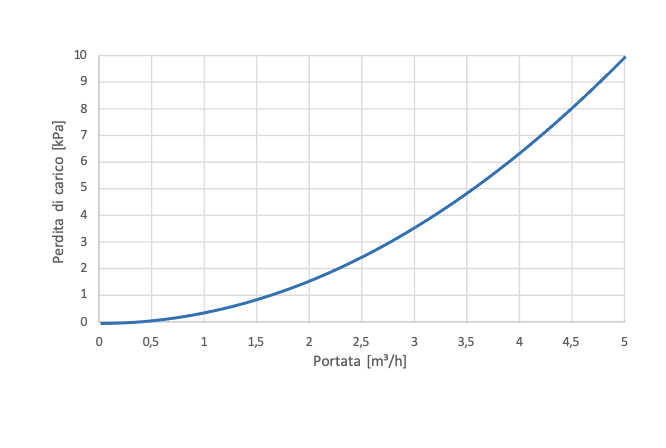

PRESSURE DROPS

RIF. EQUICOLL

x 20

x 50

A

180

340

Imballo L x B x H (mm)

750 x 410 x 30

750 x 410 x 400

Peso imballo (kg)

17.50

25.50

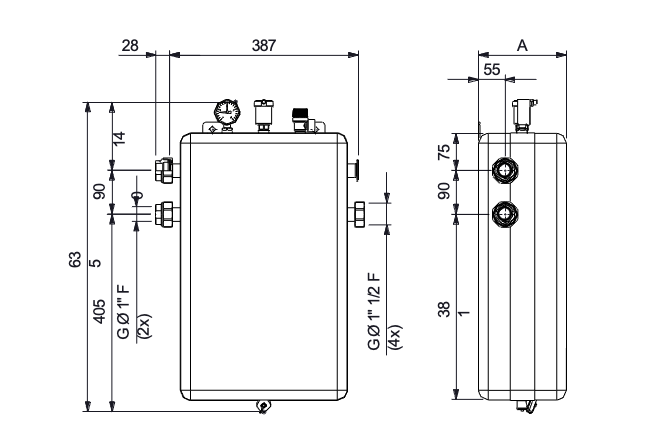

DIMENSIONALE

*The separator can also be installed rotated by 180°
** The fittings Ø 1″ 1/2 M x 1″ F can be moved to DX or SX according to plant requirements.
