EQUICOLL XL

HYDRAULIC SEPARATOR AND INERTIAL TANK

Vertical hydraulic separator with inertial storage for base installation, in AISI 316 stainless steel. Combination with CS80 and CS125 DN25 manifolds or single installation, with a special internal configuration that makes it ideal for use with heat pumps for heating and cooling, obtaining a perfect balance of the flow rates between the primary generator circuit and the secondary system circuit.

EQUICOLL is extremely flexible in installation:

on the right or left of the distribution groups, depending on the system requirements.

  • Separator/storage in AISI 316 stainless steel;
  • PLUG&PLAY installation with CS80 and CS125 DN25 systems;
  • Base fixing.
BUY NOW

PERFORMANCE

  • Nominal flow rate = 4.5 m3/h – max 6 m3/h
  • Max power = 80 kW BOILER;

  • Max power = 28 kW HEAT PUMP

CAPACITY

  • EQUICOLL-XL 100: 100 liters
  • EQUICOLL-XL 200: 200 liters

TECHNICAL DATA

  • Working temperature range: +5°/+80 C°

  • Maximum operating pressure: 6 bar

  • Connections: IN/OUT 1″ 1/4 F
  • Fluids: water – water / glycol mixtures (max 30%)

MATERIALS

  • Separator/storage: INOX AISI 316
  • Insulation: Armaflex 20 mm, dens. 16 Kg/m3, cond. Term 0.04 W/mK + PUR 50 mm Dens: 40 Kg/m3, Cond. term 0.025 W/mK

RIF

A

B

C

D

E

F

G

DESCRIPTION

Primary circulator supply

Primary circulator return

Predisposition Electrical resistance

Preparation for unloading

Predisposition of probe well

Secondary circulator supply

Secondary circulator return

Ø

1” 1/4 F

1” 1/4 F

1” 1/2 F

1/2” F

1/2” F

1” 1/4 F

1” 1/4 F

RIF. EQUICOLL

100 L

200 L

h

985

1160

O.D.

550

640

A / E / F

755

985

B / E / G

665

845

C

492.5

580

D

40

40

Packaging L x B x H (mm)

800 x 800 x 1100

800 x 800 x 1300

Packaging weight (kg)

40

50

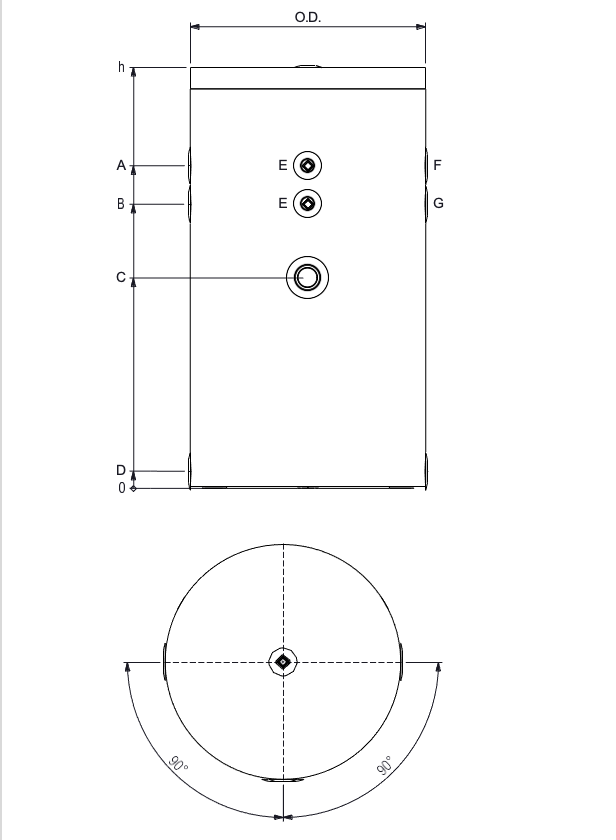

DIMENSIONAL
